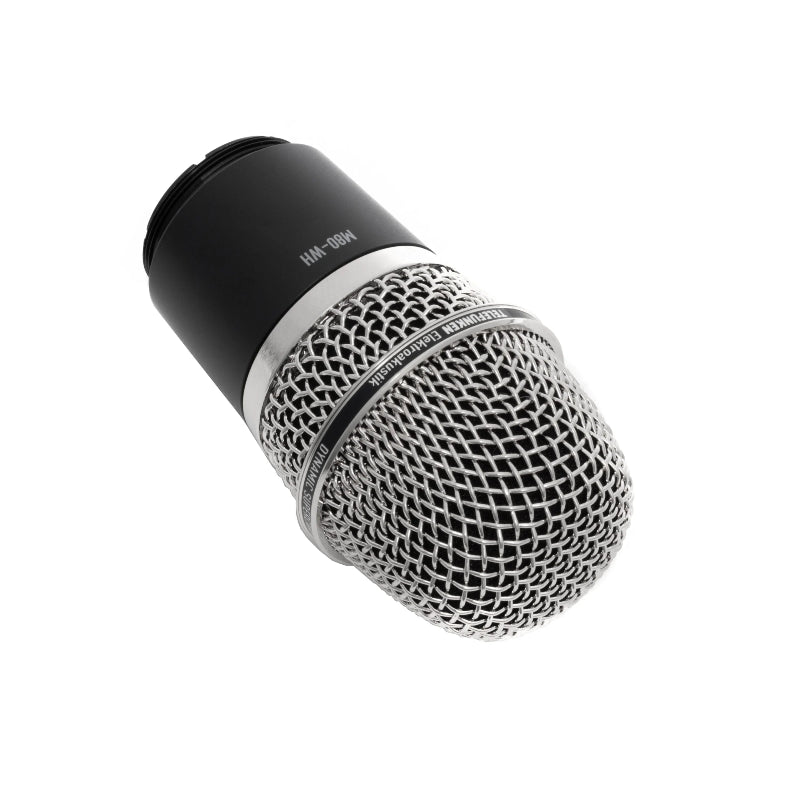

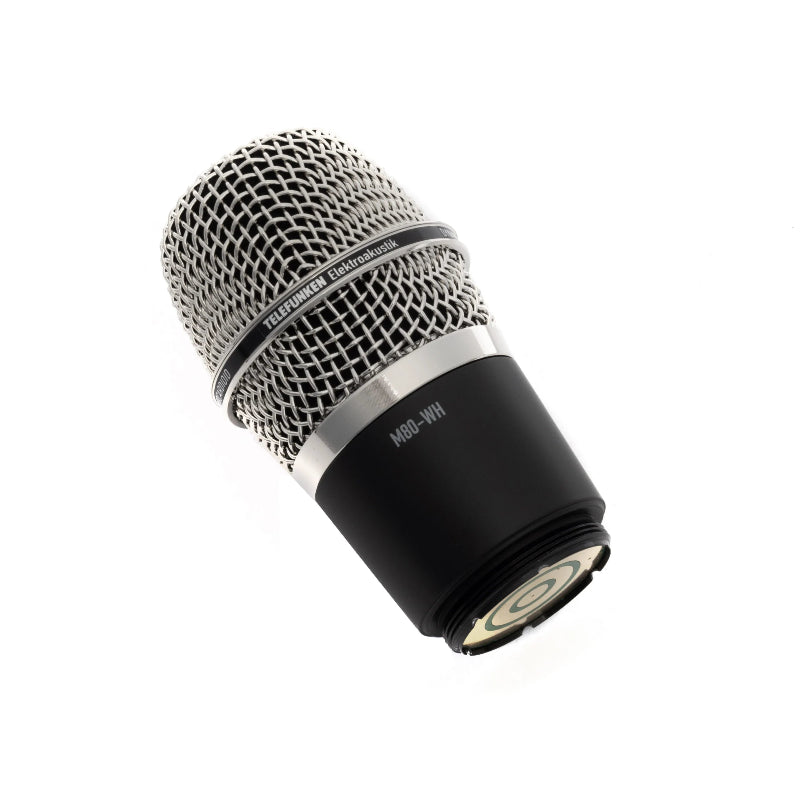

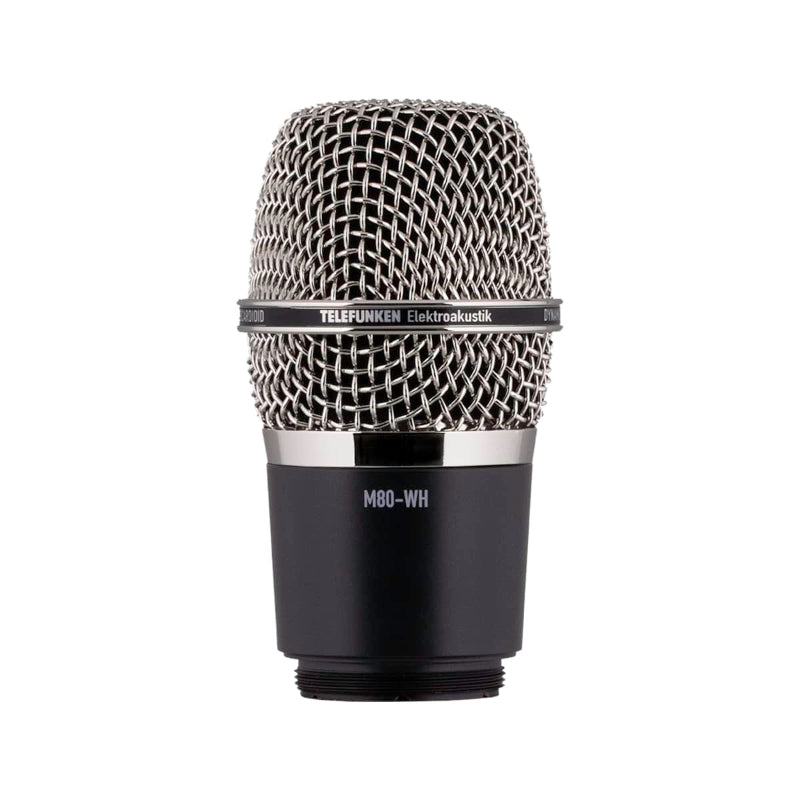

Telefunken M80-WH Capsule for Wireless
Telefunken M80-WH Capsule for Wireless
In stock
Couldn't load pickup availability
The M80-WH brings the M80’s condenser-like performance, minimal proximity effect, and superior feedback rejection to the Shure® wireless transmitter platform. Featuring the same low mass diaphragm and custom wound output transformer as the handheld M80 Standard and low-profile M80-SH, the M80-WH provides the impressive sound quality and reliability one expects from a Telefunken Dynamic Series microphone. This product is intelligently designed to minimize handling noise and seamlessly mate to your wireless system of choice.
Features
- Same detailed, condenser-like performance as the wired M80
- Prestine audio quality with a wide frequency response and high SPL handling
- Supercardioid polar pattern provides excellent feedback rejection
- Low mass diaphragm reduces proximity effect
- Custom-wound impedance-matching audio transformer
- Mates with many industry-standard wireless transmitters
- Designed and hand assembled in the USA
Applications
Compatible with the following transmitters:
Shure
• Axient
• PG
• PGX
• QLXD
• SLX
• SLXD
• UHF-R
• ULX
• ULXD
• UR2
Lectrosonics
• HH
• HHa
Sony
• UTX-M03
Technical Specifications
Type: Dynamic
Polar Pattern: Supercardioid
Frequency Range: 50 Hz – 18 kHz, ±3 dB
Capsule: 25mm Dynamic Moving Coil
Transformer: TELEFUNKEN Elektroakustik T80
Sensitivity: 1.54 mV/Pa, ±1 dB
Output Impedance: 325 Ω
Maximum SPL (for 1% THD): 135 dB
Dimensions/Size: 90 mm L x 48 mm Dia
Weight: 165 g
Included Accessories: none
SKU:M80-WH
