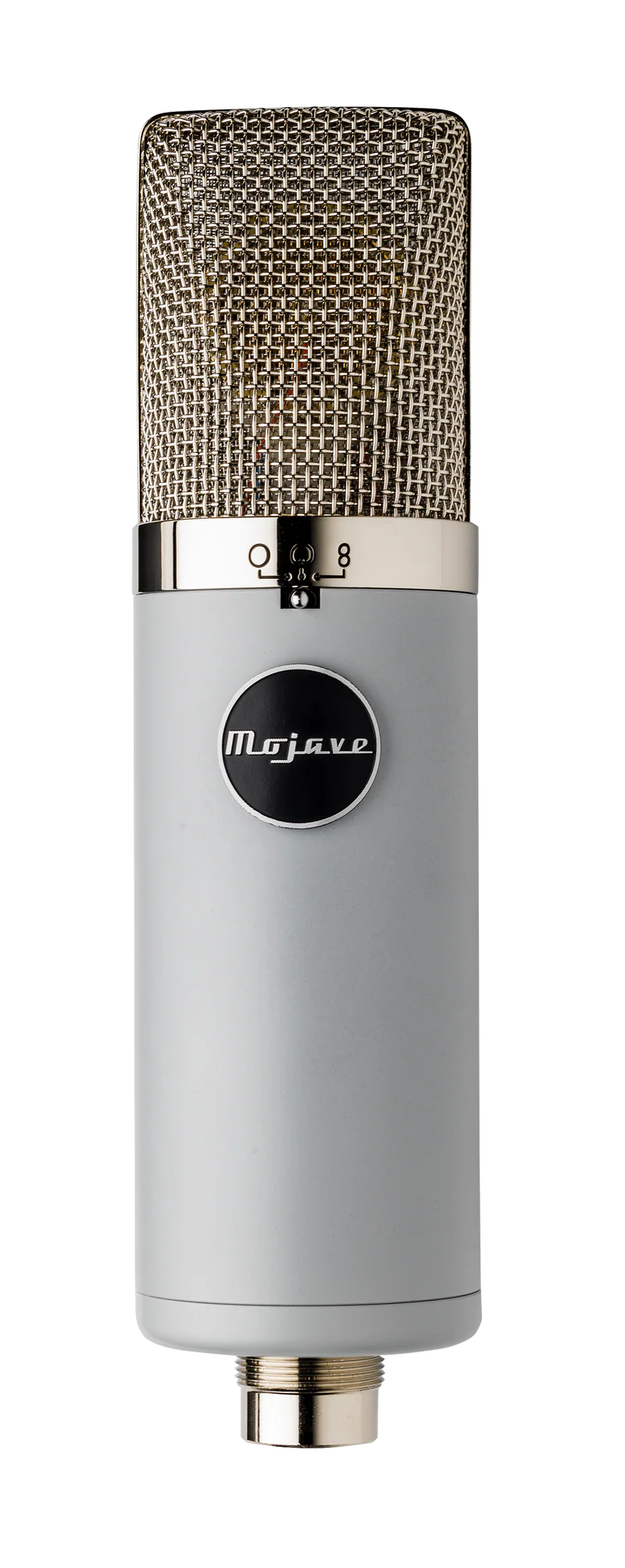

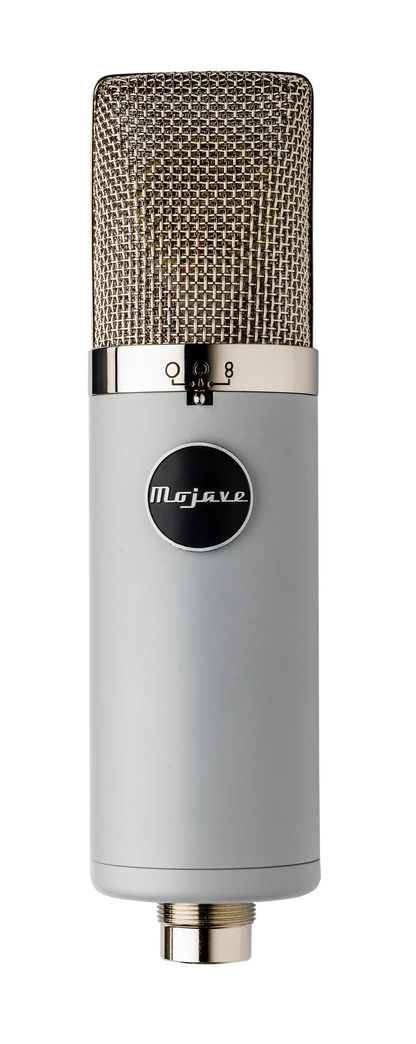

Mojave MA-301FET

Everything you love about the MA-201FET. Upgraded for Pros who want options.

The MA‑301fet takes everything artists and engineers love about the MA‑201fet with added flexibility for today’s unpredictable sessions. Designed by TECHNICAL GRAMMY® Award-winner David Royer, it delivers that unmistakable Mojave sound with added features for maximum flexibility.

Whether you’re tracking high SPL sources such as kick drums, or guitar + bass amps, the MA‑301fet adapts quickly and sounds finished straight out of the box.

Mojave Audio’s MA‑301fet: The modern U87 alternative that’s versatile, clear, and studio‑polished.

• Multi-pattern (Omni, Cardioid, Bidirectional)

• Switchable 15dB pad

• Switchable Bass Roll-off

• Hand-selected 3-micron 1″ capsule

• Custom Mojave transformer

• Military-grade FET

• Custom designed low-noise resistors

• Ultra clean signal path

Specifications:

• TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor – double diaphragm.

• DIAPHRAGM: 1-inch diameter, gold sputtered

• DIAPHRAGM THICKNESS: 3 microns

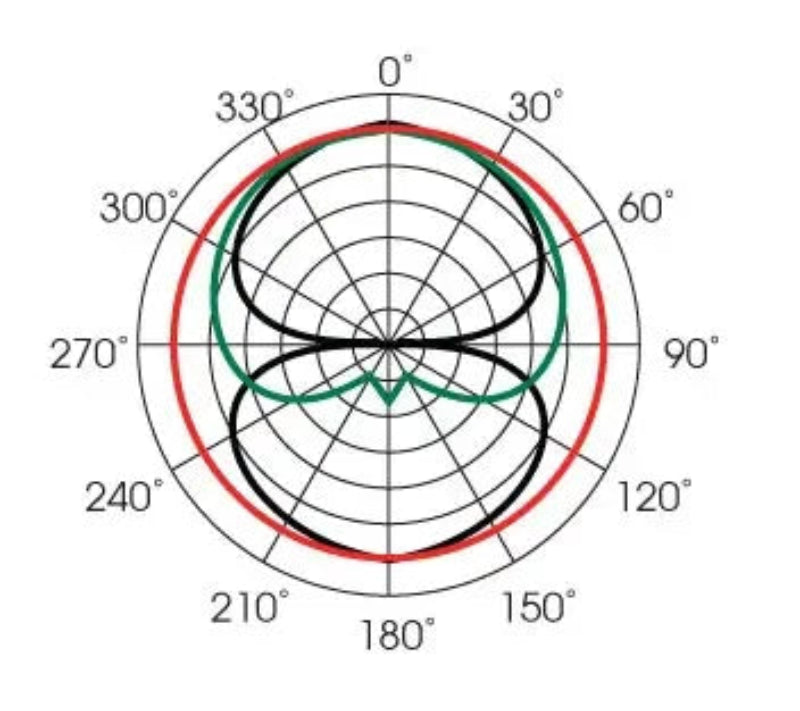

• POLAR PATTERN: 3 patterns; omni, cardioid and figure-8

• FREQUENCY RESPONSE: 20 Hz to 20 KHZ, +/-3 dB at “flat” setting of bass cut
  switch.

• BASS CUT SWITCH: Provides 6 dB per octave attenuation below
  100 Hertz in “cut” setting

• SENSITIVITY: -40.5 dB, re. 1V/pa

• MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.

• DISTORTION: < 1% @ 120 dB SPL , < 3% @ 134 dB SPL with pad off
  < 1% @ 134 dB SPL, < 3% @ 148 dB SPL with pad on

• SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)

• PAD: 15 dB

• BASS CUT: 6 dB per octave below 100 hertz.

• IMPEDANCE: 550 ohms, transformer balanced (Jensen)

• POWERING: 48VDC phantom power; current 1.2 mA

• DIMENSIONS AND WEIGHT:

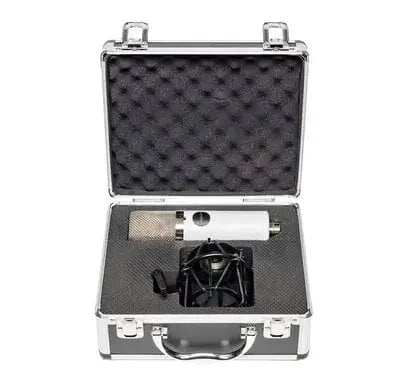

  Carrying case with microphone, shock mount: 10″ x 9″ x 4.5″, 4 lbs.
  Microphone: 7 5/8″ X 2″ (194mm x 51mm), 1 lb.
