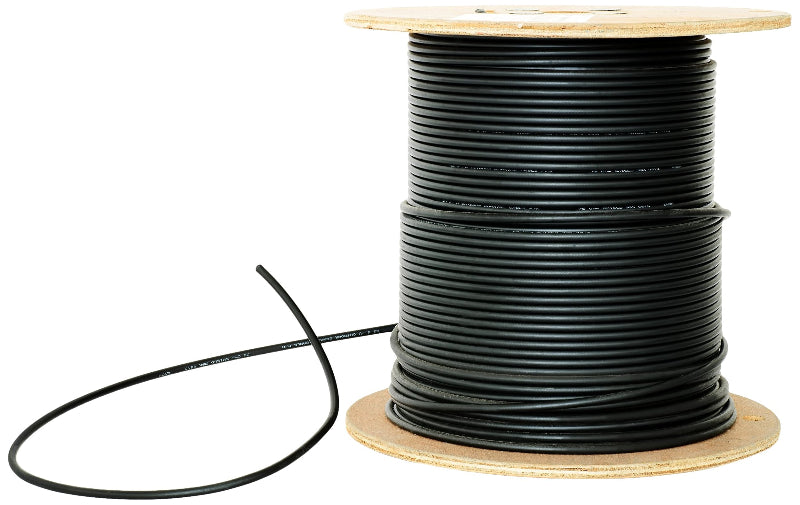

Mogami 26AWG Multicore Cable - Bulk (W2789)
Mogami 26AWG Multicore Cable - Bulk (W2789)
Regular price
$1.50 USD
Regular price
Sale price
$1.50 USD
Unit price
/
per
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
0.15mm² (#26AWG) Conductor Overall Shield Cable Series
0.15mm² (#26AWG ) conductor overall shield cable series is comprised of about two times larger conductor size as mechatro overall shield cable series. There is no community in design policy, as they were originally custom-made cables and remained as standard items one by one, however, they are suitable where larger conductor size, flexibility and compactness are all required. Available from five up to nine conductor, not in twisted pair configuration.
Conductor | Details | 30/0.08A (40×#40AWG) |
Size(mm²) | 0.150mm² (#26AWG) | |
Insulation | Ov. Dia.(mm) | 1.0Ø (0.0394") |
Material | PVC | |
Overall Shield | Type | See Each Spec. |
Coverage | 85% (Braid) ‾ 100% (Served) | |
Ov. Jacket | Material | Flexible PVC |
Color |
Dark Gray or Black |
No. of Conductors: 8
Price per foot
SKU:W2789
