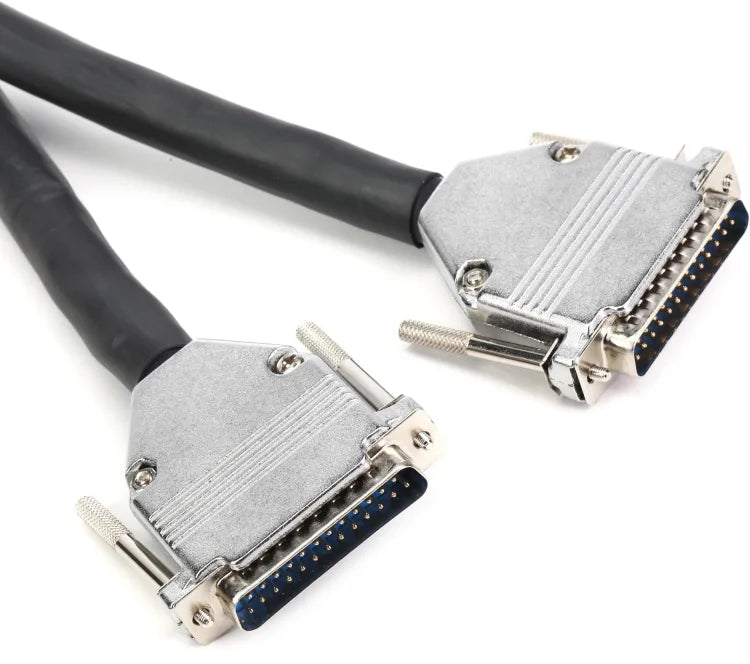

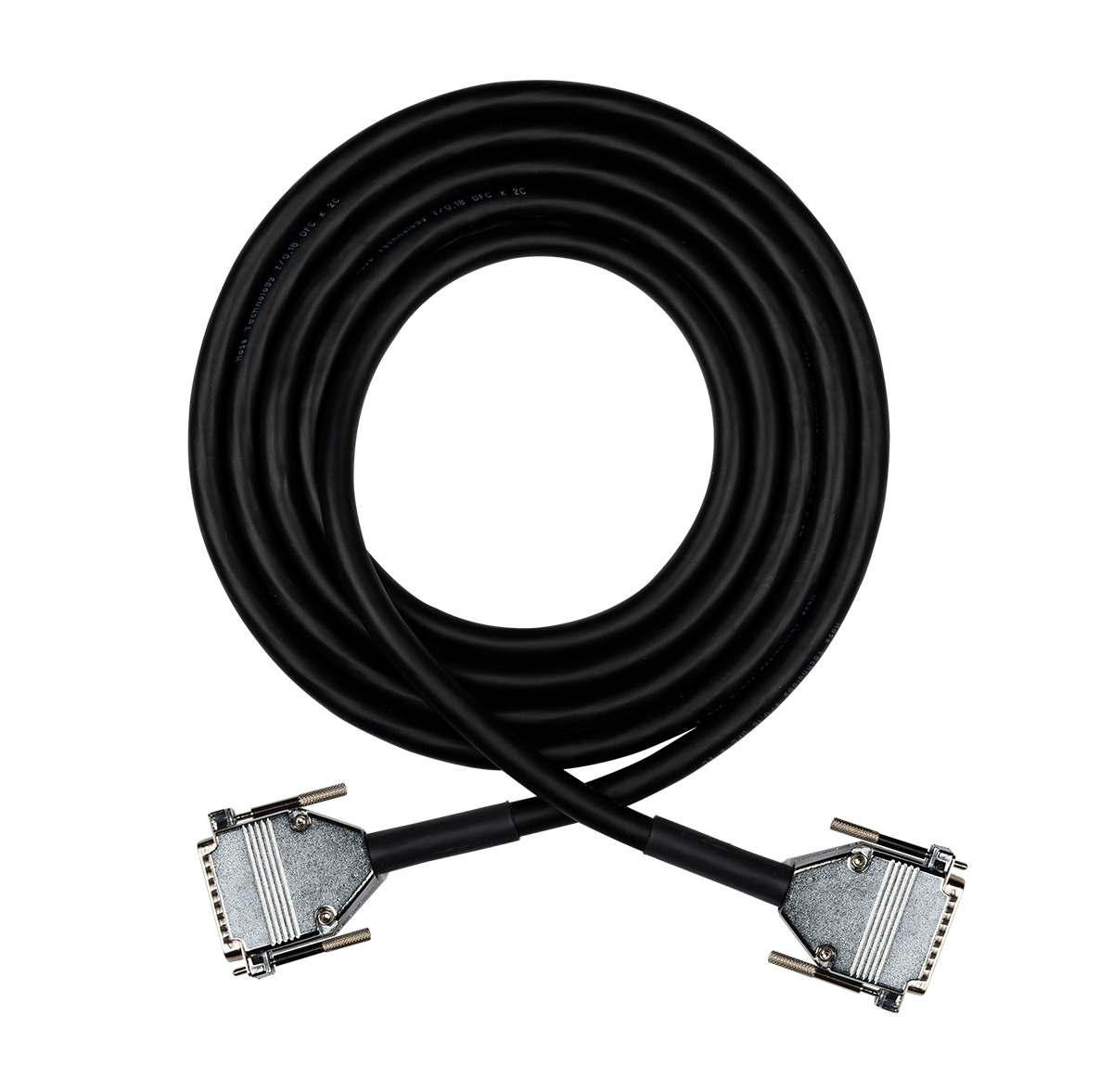

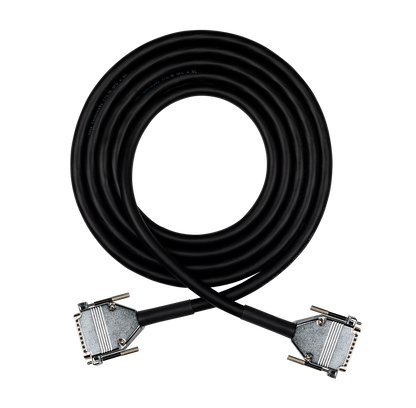

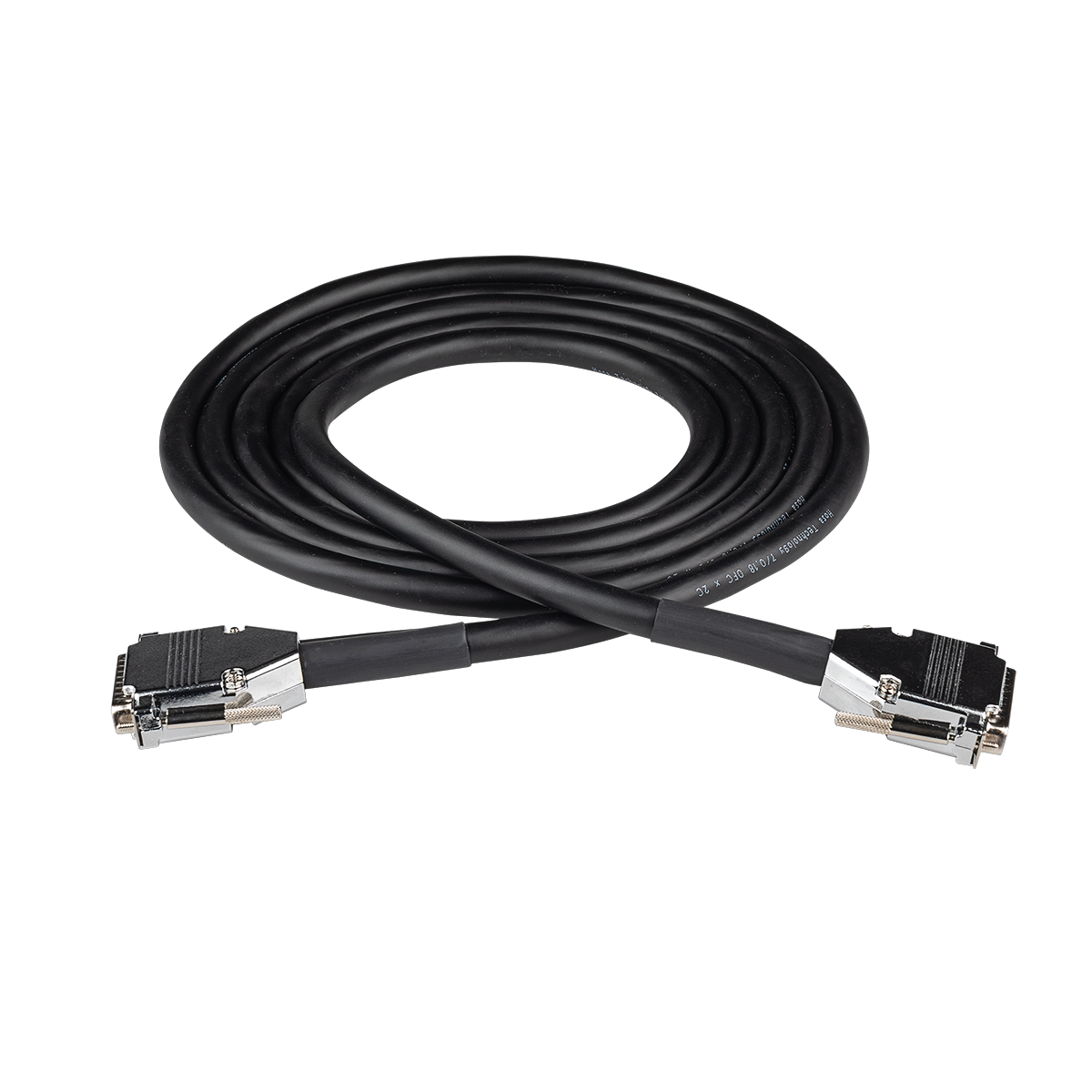

Hosa DBD-EDGE Balanced Snake DB25 to DB25

Hosa DBD Features

• Die-cast metal hoods protect the DB25 interface while improving EMI shielding and overall durability
• 24 AWG oxygen-free copper conductors support clean, accurate signal transfer
• XLPE dielectric insulation maintains low capacitance and stable performance across temperature changes
• Individual 58-strand spiral shields on all eight channels keep noise low and signals focused
• Wired to the Tascam D-Sub standard to support eight channels of analog audio for Digidesign, RME, Yamaha, and other compatible DB25 interfaces

Hosa DBF-501 Specifications

• Series: Hosa Edge
• Conductor Material: Oxygen-Free Copper (OFC)
• Conductor Gauge: 24 AWG (0.18 mm²)
• Shielding: Spiral Shield (58/0.10 mm)
• Dielectric: XLPE (Cross-linked Polyethylene)
• Pinout: Analog Tascam Standard (Avid/RME/UA Compatible)
• Connectors: Die-Cast Metal DB25 to DB25
