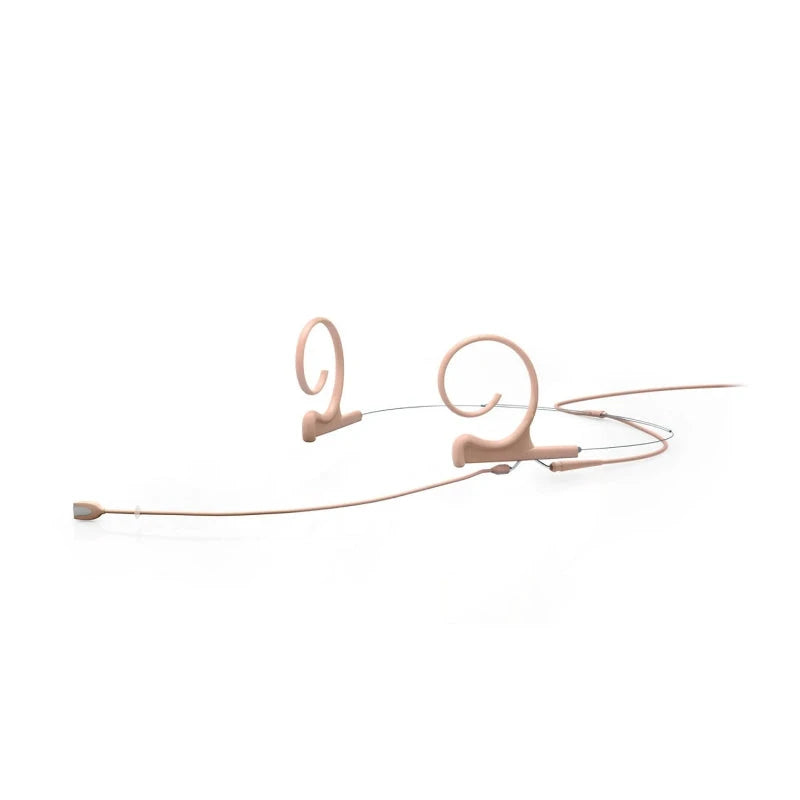

DPA 4188 CORE Slim Directional Flex Headset Microphone, 120mm Boom, Beige, TA4F Mini-XLR (4188-DC-F-F10-LH)

4188 Slim Directional Flex Headset Microphone (4188-DC-F-F10-LH)

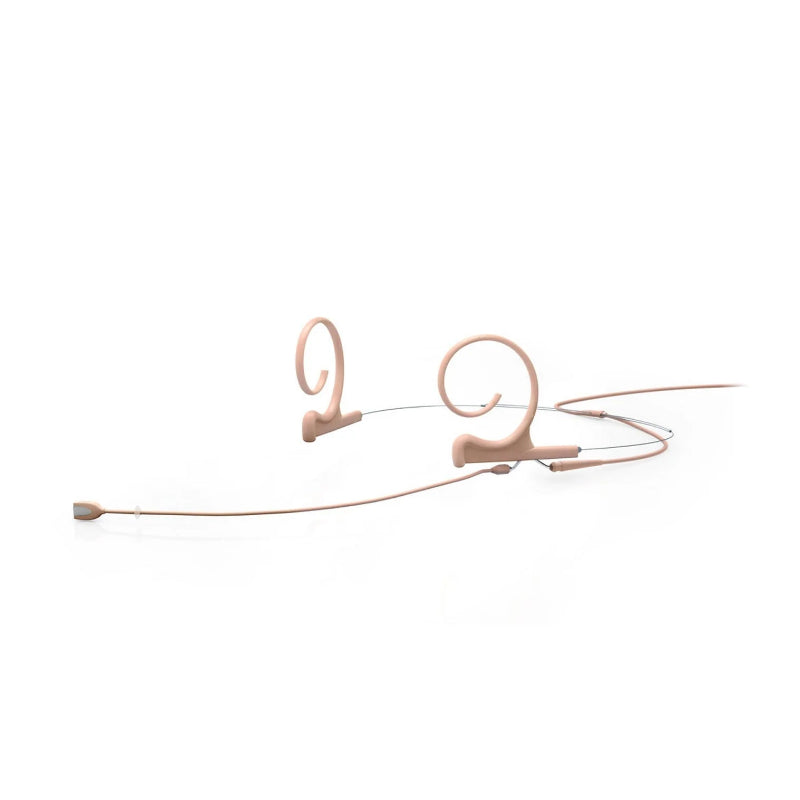

The beige d:fine Core 4188 Slim Directional Flex Headset Mic with 120mm Boom and TA4F Connector from DPA combines the sound of the d:fine 4088 directional capsule and Core amplifier in a lightweight and flexible two-ear headset that offers accurate, highly intelligible speech and plenty of headroom for loud vocals. The microphone's electret-condenser capsule provides a crisp, natural sound while its cardioid polar pattern focuses audio capture on the wearer, picking up less background sound and helping to control feedback issues on loud stages where sound reinforcement gear is used.

The flexible design is quickly and easily taken on and off and provides a fit so light and comfortable that presenters and performers will barely notice it during conference, speech, and active live performance applications. The headset is ergonomically engineered to easily adjust and fit any ear size and head shape, while, at the same time, it mounts securely and is hardly visible. By rotating the boom and the ear hook, the microphone can be used on either the left or the right ear. In addition, the connector splits the cable from the microphone boom allowing you to swap out broken cables and/or microphone booms easily. The 4188 includes a makeup cover, foam windscreen, and a pop screen.

Key Features

• Pristine audio quality
• Lightweight and flexible
• Easy mounting to the left or right
• Minimal visual impact
• Resistant to humidity
• Flexible adapter system fits most professional wireless systems

Technical Specifications

Directional pattern
Cardioid
Principle of operation
Pressure gradient
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz - 20 kHz
Frequency range, -2 dB, Near field 2-3 cm (0.8 - 1.2 in)
100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, -3 dB at 1 kHz
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 26 dB(A) re. 20 uPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 38 dB (max. 40 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 68 dB(A)
Total harmonic distortion (THD) CORE
< 1% THD up to 137 dB SPL peak
Dynamic range CORE
Typ. 111 dB
Max. SPL, peak before clipping
144 dB
Output impedance
From MicroDot: 30 - 40 OHM. From DAD6001-BC: 100 OHM
Cable drive capability
Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Output balance principle
Signal balanced with DAD6001-BC XLR Adapter
Common mode rejection ratio (CMRR)
> 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
Power supply (for full performance)
Min. 5 V to max. 50 V through DPA adapter for wireless systems
Current consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Weight
Microphone boom: 0.8 g (0.03 oz). Earhook: 1.1 g (0.04 oz). Cabel: 6.6 g (0.23 oz). Total: 8.5 g (0.30 oz)
Microphone diameter
5.4 mm (0.21 in)
Cable length
1.3 m (4.3 ft)
Cable diameter
1.6 mm (0.06 in)
Polarity
+V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
Electromagnetic compatibility (EMC)
Fully compatible
Temperature range
-40 deg C to 45 deg C (-40 deg F to 113 deg F)
Relative humidity (RH)
Up to 90%
