ADJ

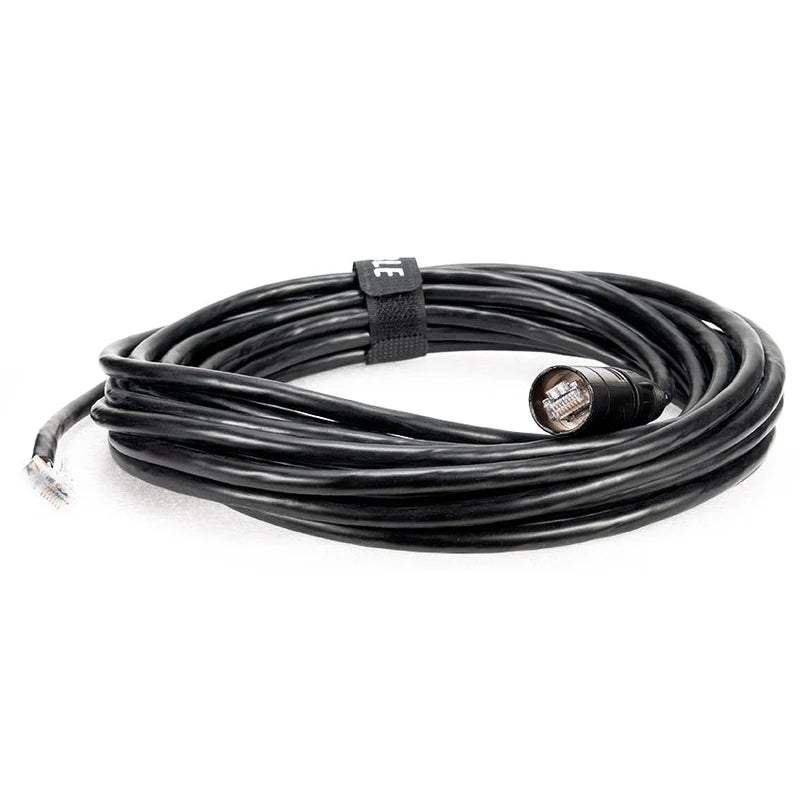

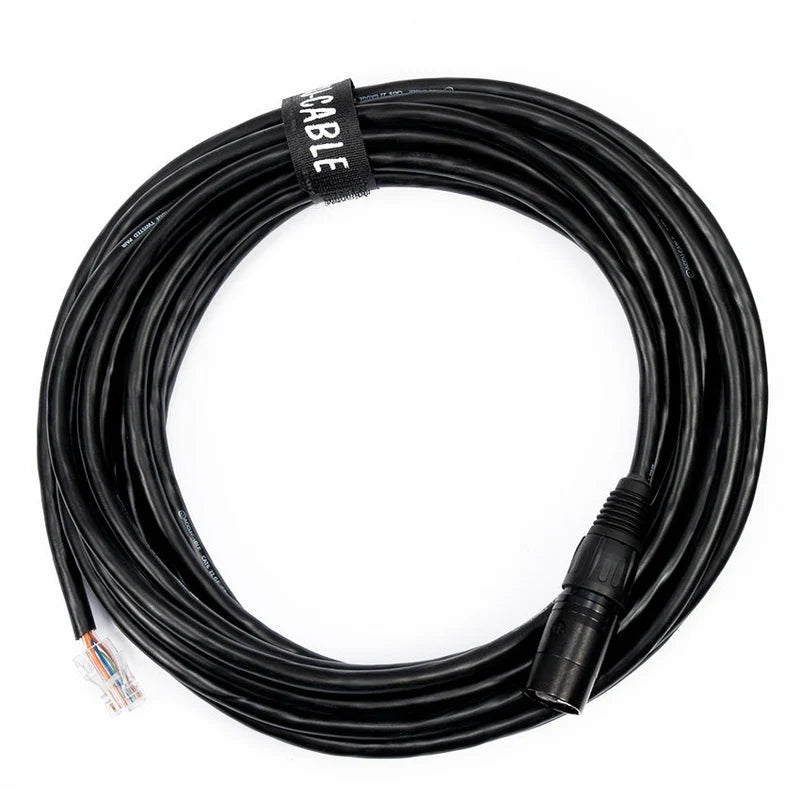

Accu Cable CAT6PRO25FC Cat 6 Ethercon cable 25'

Accu Cable CAT6PRO25FC Cat 6 Ethercon cable 25'

Regular price $48.99 USD
Regular price Sale price $48.99 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Specifications

25' First Data Cable, Processor To First Cabinet *Neutrik Ethercon

The CAT6 Pro cable range is a 8 conductor, twisted pair cable complying to the CAT6 standard. The CAT6 Pro cable has a plastic separator between the different pairs, which follows the most stringent specifications for crosstalk and noise. Because of this, CAT6 Pro cable supports frequencies up to 250 Mhz. The maximum cable run length according to the standards is limited to 328 feet (100 meters).

  • Inner conductor: Bare COPPER 19 x 0.12
  • Inner conductor section: 0.22mm²
  • Isolation: HDPE Ø 0.95mm
  • T-568B, Straight Cable Wiring : Blue (Pin 4), Blue-White (Pin 5), Orange (Pin 2), Orange-White (Pin 1), Green (Pin 6), Green-White (Pin 3), Brown (Pin 8), Brown-White (Pin 7)
  • Number of conductors: 8
  • Conductor Twisting: Yes
  • Outer jacket: Flexible PVC
  • Outer jacket Black
  • Outer jacket dimensions: Ø 6.5mm
  • American Wire Gauge: 24 AWG

SKU:ADJ CAT6PRO25FC
