2U Lockable Lightweight Aluminum Rack Drawer – 14" Deep

Up to 40% lighter than the equivalent steel drawer for the same load rating, it is well suited to touring and mobile racks where every kilo counts. The R2295-2UK runs on heavy-duty ball-bearing slides for smooth, repeatable full extension, with reinforced 0.079" (2mm) rack-mounting ears that keep the fixing points solid through repeated transport and load cycles. The reversible rear support brackets (R2292-RSB-KIT) are included as standard.

Specifications:

• Rack size: 2U (19" standard, EIA-310 compatible)

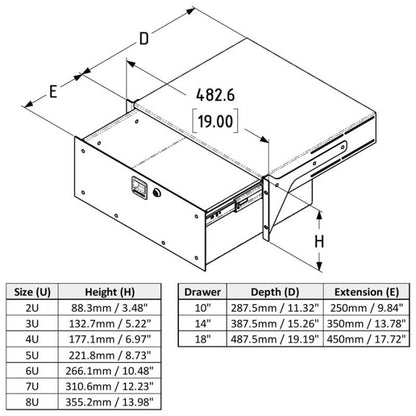

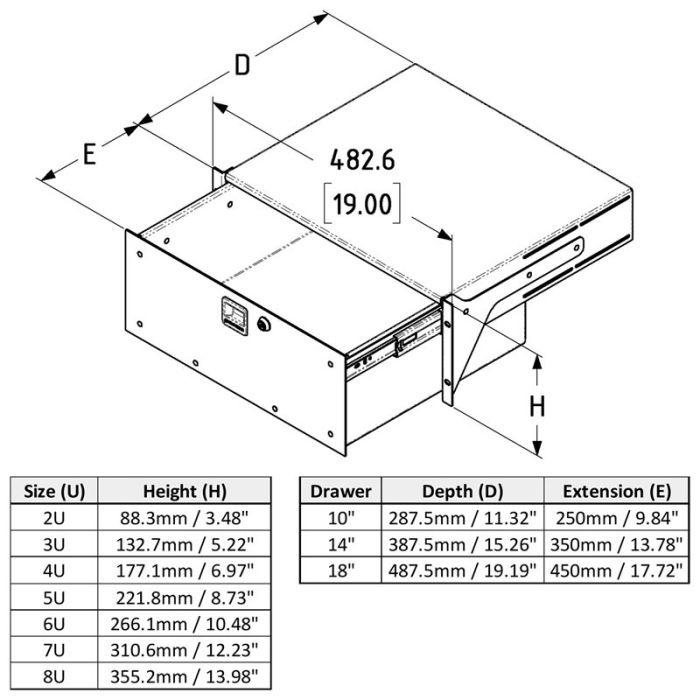

• External dimensions (W × D × H): 19.0" × 15.3" × 3.5" (482.6mm x 387.5mm x 88.3mm)
• Internal dimensions (W × D × H): 16.1" (409mm) × 14.8" (375mm) × 2.9" (74mm)
• Recommended load capacity: 49lb (22kg)
• Slide-out extension: 13.8" (350mm) runner travel on heavy-duty ball-bearing slides
• Product weight: 9lb (4.09kg)
• Material: 0.059" (1.5mm) aluminum (steel rack ears, reinforced 0.079" (2mm))
• Finish: Black powder coated
• Front panel: Flat (space-saving)
• Lock / Latch: Slam latch + key lock (2 keys supplied)
• Cable access: Not fitted
• Country of origin: United Kingdom

Compatible accessories:

• R2292-RSB-KIT — reversible rear support brackets (included as standard)
• 3232-SLAM-LOCK — replacement slam latch (0.079" (2mm) panels)
• R1292-KEY — replacement barrel lock + 2 keys
